深圳市金川來環保建材有限公司

Shenzhen Jin chuan Lai environmental protection material Co., Ltd.

環保塑膠管道及閥門廣東總經銷



描述:

規格：Schedule 80 / CTS

拆裝容易可用于各種型式之管路

特性:

規格:

型號 尺寸 規格 材質 O-環 接口
VP-240 3/8"~4" ANSI, JIS, DIN, BS PVC EPDM, FPM Socket, Threaded
VP-241 3/8"~4" ANSI, JIS, DIN, BS CPVC EPDM, FPM Socket, Threaded
VP-243 3/8"~4" ANSI, JIS, DIN, BS PVDF EPDM, FPM Socket, Threaded
VP-244 3/8"~4" ANSI, JIS, DIN, BS PP EPDM, FPM Socket, Threaded

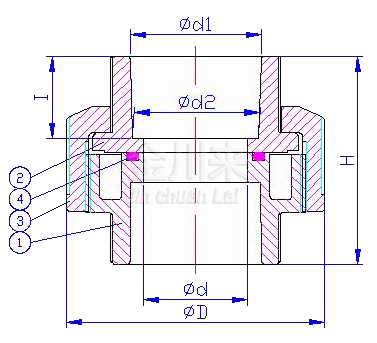

NO. PART MATERIAL Q'TY
1 本體(BODY) UPVC,CPVC,PP,PVDF 1
2 外特普(END CONNECTOR) UPVC,CPVC,PP,PVDF 1
3 螺帽(UNION NUT) UPVC,CPVC,PP,PVDF 1
4 O環(O-RING) EPDM, FPM 1


SIZE
Nom 		3/8"
(10mm) 		1/2"
(15mm) 		3/4"
(20mm) 		1"
(25mm) 		1-1/4"
(32mm) 		1-1/2"
(40mm) 		2"
(50mm) 		2-1/2"
(65mm) 		3"
(80mm) 		4"
(100mm)
JIS ?d1 18.4 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
?d2 17.78 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
I 19.05 22.2 25.4 28.6 31.8 34.9 38.1 44.45 47.63 57.15
ANSI ?d1 17.45 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
?d2 17.04 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
I 19.05 22.22 25.4 28.58 31.75 34.93 38.1 44.45 47.63 57.15
DIN ?d1 16.3 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
?d2 15.9 20.1 25.1 32.1 40.1 50.1 63.1 75.1 90.1 110.1
I 14 16 19 22 26 31 38 44 51 61
BS ?d1 17.5 21.5 26.9 33.7 42.4 48.4 60.5 75.5 89.1 114.5
?d2 16.8 21.3 26.7 33.5 42.2 48.2 60.3 75 88.8 114.1
I 19.05 16.5 19.5 22.5 27 30 36 44.45 47.63 57.15
thd./in NPT 18 14 14 11.5 11.5 11.5 11.5 8 8 8
BSPT 19 14 14 11 11 11 11 11 11 11
?D 38 46 55 66 82 98 119.5 140 163 225
?d 12.3 13.5 16.5 22.1 29.8 38 48 63 75 100
H 48 55 63 71 86.5 89 96.5 113 126 162


SCH 40 DIM.
SIZE
Nom 		1/2"
(15mm) 		3/4"
(20mm) 		1"
(25mm) 		1-1/4"
(32mm) 		1-1/2"
(40mm) 		2"
(50mm)
?d1 21.54 26.87 33.65 42.42 48.56 60.63
?d2 21.23 26.57 33.27 42.07 48.11 60.17
I 17.8 18.7 22.7 24.3 28.3 29.9
?D 41 47.4 58.2 70.1 80.5 94
?d 18 22.5 29 38 43.5 55.5
H 43 45.3 58.1 58.8 68.4 72.1


CTS DIM.
SIZE
Nom 		1/2"
(15mm) 		3/4"
(20mm) 		1"
(25mm) 		1-1/4"
(32mm) 		1-1/2"
(40mm)
?d1 16.08 22.45 28.83 35.2 41.66
?d2 15.72 22.1 28.47 34.85 41.2
I 12.7 17.78 22.86 27.94 33
?d 12 18.5 24.5 26 35
?D 35 46 55 66 82
H 47 55.2 63 70.1 86
